Mercedes-Benz GLC : 360° camera / Guide lines

Mercedes-Benz GLC. Guide lines

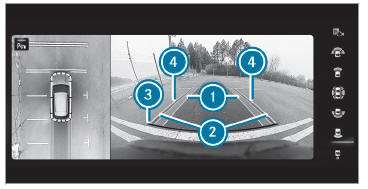

Mercedes-Benz GLC. Guide lines Yellow lane marking the course the tires will take at the current steering wheel angle (dynamic)

Mercedes-Benz GLC. Guide lines Yellow guide line, vehicle width (driven surface) depending on the current steering wheel angle (dynamic)

Mercedes-Benz GLC. Guide lines Red guide line at a distance of approximately 1.0 in (0.3 m) from the rear area

Mercedes-Benz GLC. Guide lines Mark at a distance of approx. 3.3 ft (1.0 m)

When Active Parking Assist is active, lane markings Mercedes-Benz GLC. Guide lines are displayed in green.

The guide lines in the media display show the distances to your vehicle. The distances apply to road level. In trailer mode, the guide lines are shown at the level of the trailer hitch.

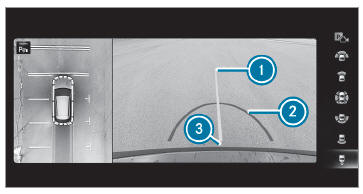

Trailer view (vehicles with a trailer hitch) If you select trailer view and no trailer is coupled to the vehicle, the following display appears:

Mercedes-Benz GLC. Guide lines

Mercedes-Benz GLC. Guide lines Yellow guide line, locating aid

Mercedes-Benz GLC. Guide lines Red guide line at a distance of approximately 1.0 in (0.3 m) from the ball head of the trailer hitch

Mercedes-Benz GLC. Guide lines Ball head of the trailer hitch

Mercedes-Benz GLC. Guide lines

When the electrical connection is established between the vehicle and the trailer, the display changes to the side camera view.

This view supports maneuvering procedures with a trailer.

    Top view

    Lane indicating the route the vehicle will take at the current steering wheel angle Warning display of Parking Assist PARKTRONIC Your vehicle from above The color of the individual segments of warning display is based on the distance to the detected obstacle: Yellow segments: obstacles at a distance between approx...

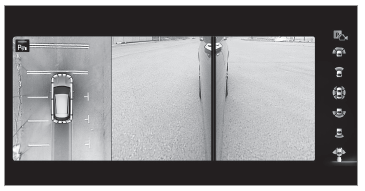

    Side view of the mirror cameras

    T..
