Mercedes-Benz GLC 2016-2026 Owners Manual / Instrument Display and on-board computer / Head-up Display / Function of the Head-up Display / Display content

Mercedes-Benz GLC : Function of the Head-up Display / Display content

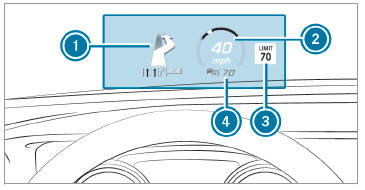

Mercedes-Benz GLC. Display content

Mercedes-Benz GLC. Display content Navigation instructions

Mercedes-Benz GLC. Display content Current speed

Mercedes-Benz GLC. Display content Detected instructions and traffic signs

Mercedes-Benz GLC. Display content Set speed in the driver assistance system (e.g. cruise control)

When you receive a call, the Mercedes-Benz GLC. Display content Incoming Call message will appear on the Head-up Display.

In audio mode, the station name or track will be shown temporarily when the audio source is being actively operated.

Function of the Head-up Display

N..

System limits

The visibility is influenced by the following conditions: Seat position Image position setting Ambient light Wet road surfaces Objects on the display cover Polarization in sunglasses In extreme sunlight, sections of the display may appear washed out...
