Mercedes-Benz GLC : Securing the child restraint system with the seat belt / Securing the child restraint system with the seat belt on the front passenger seat

  • When installing a belt-secured child restraint system on the front passenger seat, always observe the following:

Mercedes-Benz GLC. passenger seat  Observe the notes on rearward-facing and forward-facing child restraint systems on the front passenger seat.

Mercedes-Benz GLC. passenger seat Observe the child restraint system manufacturer's installation and operating instructions.

Mercedes-Benz GLC. passenger seat When using a forward-facing child restraint system in weight category I: remove the head restraint from the respective seat, if possible.

After the child restraint system has been removed, replace the head restraints again immediately and adjust them correctly.

Mercedes-Benz GLC. passenger seat The backrest of the forward-facing child restraint system must, as far as possible, be resting on the seat backrest of the front passenger seat.

Mercedes-Benz GLC. passenger seat If the head restraint of the child seat cannot be fully extended when it is installed in the vehicle, this will result in restrictions on the maximum size setting for child restraint systems in weight category II or III.

Contact with the roof when the head restraint is fully extended and locked in place will not result in any restrictions on use.

Mercedes-Benz GLC. passenger seat The child restraint system must not be put under strain between the roof and the seat cushion and/or be installed facing the wrong direction.

Mercedes-Benz GLC. passenger seat The child restraint system must not be put under strain by the head restraint. Adjust the head restraints as appropriate.

Mercedes-Benz GLC. passenger seat Never place objects (e.g. cushions) under or behind the child restraint system.

The seat belt on the front passenger side is equipped with a special seat belt retractor.

When enabled, the special seat belt retractor ensures that the seat belt does not slacken once the child seat is secured.

Mercedes-Benz GLC. passenger seat Set the front passenger seat as far back as possible and move the seat into the highest position if possible.

Mercedes-Benz GLC. passenger seat Fully retract the seat cushion length adjustment.

Mercedes-Benz GLC. passenger seat Adjust the seat cushion inclination so that the front edge of the seat cushion is in the highest position and the back edge of the seat cushion is in the lowest position.

Mercedes-Benz GLC. passenger seat Set the seat backrest to the most vertical position possible.

Mercedes-Benz GLC. passenger seat Install the child restraint system. The entire base of the child restraint system must always rest on the sitting surface of the front passenger seat.

Mercedes-Benz GLC. passenger seat Always make sure that the shoulder belt strap is correctly routed from the seat belt outlet of the vehicle to the shoulder belt guide on the child restraint system.

The shoulder belt strap must be routed forwards and downwards from the seat belt outlet.

Mercedes-Benz GLC. passenger seat If necessary, adjust the seat belt outlet and the front passenger seat accordingly.

    Notes on rearward-facing and forward-facing child restraint systems on the front passenger seat

    WARNING Risk of injury or death when using a rearward-facing child restraint system while the front passenger airbag is enabled If you secure a child in a rearward-facing child restraint system on the front passenger seat and the PASSENGER AIR BAG OFF indicator lamp is off, the front passenger airbag can deploy in the event of an accident...

    Child safety locks

    ..

    Other information:

    Mercedes-Benz GLC 2016-2022 Owners Manual: Operating the on-board computer


    Observe the legal requirements for the country in which you are currently driving when operating the on-board computer. The on-board computer is operated using the left-hand Touch Control and the left-hand back/ home button. When the on-board computer is being operated, different acoustic signals will sound as operating feedback, e...

    Mercedes-Benz GLC 2016-2022 Owners Manual: Mounting a new wheel


    NOTE Mercedes-AMG vehicles Observe the notes in the Supplement. You could otherwise fail to recognize dangers. WARNING Risk of accident from losing a wheel Oiled, greased or damaged wheel bolt/wheel nut threads or wheel hub/wheel mounting bolt threads can cause the wheel bolts/ wheel nuts to come loose...

    Categories

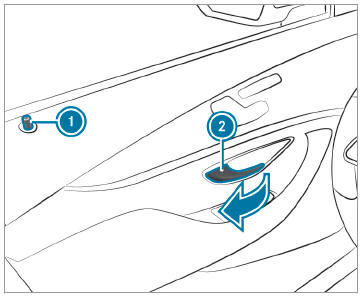

    Unlocking/opening the doors from the inside
