Mercedes-Benz GLC 2016-2022 Owners Manual / Wheels and tires / Changing a wheel / Raising the vehicle when changing a wheel

Mercedes-Benz GLC : Changing a wheel / Raising the vehicle when changing a wheel

Requirements:

  • There are no persons in the vehicle.
  • The vehicle has been prepared for a wheel change.

Important notes on using the jack:

  • Use only a vehicle-specific jack that has been approved by Mercedes-Benz to raise the vehicle.
  • The jack is only designed for raising and holding the vehicle for a short time while a wheel is being changed and not for maintenance work under the vehicle.
  • The jack must be placed on a firm, flat and non-slip surface. If necessary, use a large, flat, load-bearing, non-slip underlay.

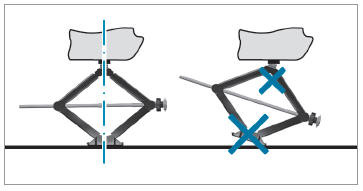

  • The foot of the jack must be positioned vertically under the jack support point.

Mercedes-Benz GLC. Raising the vehicle when changing a wheel

Rules of conduct when the vehicle is raised:

  • Never place your hands or feet under the vehicle.
  • Never lie under the vehicle.
  • Do not start the engine and do not release the electric parking brake.
  • Do not open or close any doors or the tailgate.

Mercedes-Benz GLC. Raising the vehicle when changing a wheel

Mercedes-Benz GLC. Raising the vehicle when changing a wheel Using the lug wrench, loosen the wheel bolts on the wheel you wish to change by about one full turn. Do not unscrew the bolts completely.

Mercedes-Benz GLC. Raising the vehicle when changing a wheel

Position of jack support points

NOTE Mercedes-AMG vehicles

Mercedes-Benz GLC. Raising the vehicle when changing a wheel Observe the notes in the Supplement. You could otherwise fail to recognize dangers.

WARNING Risk of injury from incorrect positioning of the jack

If you do not position the jack correctly at the appropriate jacking point of the vehicle, the jack could tip with the vehicle raised.

Mercedes-Benz GLC. Raising the vehicle when changing a wheelOnly position the jack at the appropriate jacking point of the vehicle. The base of the jack must be positioned vertically under the jacking point of the vehicle.

NOTE Vehicle damage from the jack

If you do not position the jack correctly at the appropriate jack support point of the vehicle, the jack could tip over with the vehicle raised.

Mercedes-Benz GLC. Raising the vehicle when changing a wheel The jack is designed exclusively for jacking up the vehicle at the jack support points.

Mercedes-Benz GLC. Raising the vehicle when changing a wheel Take the ratchet out of the tire-change tool kit and place it on the hexagon nut of the jack so that the letters "AUF" are visible.

Mercedes-Benz GLC. Raising the vehicle when changing a wheel

Mercedes-Benz GLC. Raising the vehicle when changing a wheel Position support Mercedes-Benz GLC. Raising the vehicle when changing a wheel of jack Mercedes-Benz GLC. Raising the vehicle when changing a wheel on jack support point Mercedes-Benz GLC. Raising the vehicle when changing a wheel.

Mercedes-Benz GLC. Raising the vehicle when changing a wheel Turn ratchet Mercedes-Benz GLC. Raising the vehicle when changing a wheel clockwise until support Mercedes-Benz GLC. Raising the vehicle when changing a wheel sits completely on jack support point Mercedes-Benz GLC. Raising the vehicle when changing a wheel and the base of the jack lies evenly on the ground.

Mercedes-Benz GLC. Raising the vehicle when changing a wheel Turn ratchet Mercedes-Benz GLC. Raising the vehicle when changing a wheel until the tire is raised a maximum of 1.2 in (3 cm) from the ground.

Mercedes-Benz GLC. Raising the vehicle when changing a wheel Loosen and remove the wheel.

    Removing and installing the wheel trim/hub caps

    Requirements: The vehicle is prepared for a wheel change. Plastic hub cap To remove: turn the center cover of the hub cap counter-clockwise and remove the hub cap...

    Removing a wheel

    Requirements: The vehicle is raised. NOTE Mercedes-AMG vehicles Observe the notes in the Supplement. You could otherwise fail to recognize dangers...
