Mercedes-Benz GLC : Tire labeling / Tire Quality Grading

In accordance with the US Department of Transportation's "Uniform Tire Quality Grading Standards", tire manufacturers are required to grade their tires on the basis of the following three performance factors:

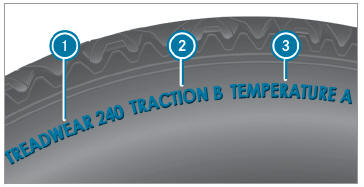

Mercedes-Benz GLC. Tire Quality Grading

Mercedes-Benz GLC. Tire Quality Grading Tread wear grade

Mercedes-Benz GLC. Tire Quality Grading Traction grade

Mercedes-Benz GLC. Tire Quality Grading Temperature grade

The data shown in the illustration is example data.

The classification is not legally stipulated for Canada, but it is generally stated.

Tread wear grade

The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1\1/2) times as well on the government course as a tire graded 100.

The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate conditions.

Traction grade

DANGER Risk of accident due to inadequate traction

The traction grade assigned to this tire is based on straight-ahead braking traction tests.

Mercedes-Benz GLC. Tire Quality Grading Always adapt your driving style and drive at a speed to suit the prevailing traffic and weather conditions.

NOTE Damage to the drivetrain from wheelspin

Mercedes-Benz GLC. Tire Quality Grading Avoid wheelspin.

The traction grades, from highest to lowest, are AA, A, B and C. Those grades represent the tire's ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.

Temperature grade

WARNING Risk of accident from tire overheating and tire failure

Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause excessive heat build-up and possible tire failure.

Mercedes-Benz GLC. Tire Quality Grading Observe the recommended tire pressure.

Mercedes-Benz GLC. Tire Quality Grading Regularly check the pressure of all the tires.

Mercedes-Benz GLC. Tire Quality Grading Adjust the tire pressure, if necessary.

The temperature grades are A (the highest), B and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.

    Overview of tire labeling

    Uniform Tire Quality Grading Standards DOT (Department of Transportation), (TIN) Tire Identification Number Maximum tire load Maximum tire pressure Manufacturer Characteristics of the tire Tire size designation, load-bearing capacity, speed rating and load index Tire name The data shown in the illustration is example data...

    DOT, Tire Identification Number (TIN)

    US tire regulations stipulate that every tire manufacturer or retreader must imprint a TIN in or on the side wall of each tire produced. The data shown in the image is example data...
