Mercedes-Benz GLC : Tow starting or towing away / Loading the vehicle for transport

Mercedes-Benz GLC. Loading the vehicle for transport Observe the notes on towing away.

Mercedes-Benz GLC. Loading the vehicle for transport Connect the tow bar to the towing eye in order to load the vehicle.

You can also attach the tow bar to the trailer hitch.

Mercedes-Benz GLC. Loading the vehicle for transport Vehicles with automatic transmission: Shift the automatic transmission to position Mercedes-Benz GLC. Loading the vehicle for transport.

Vehicles with automatic transmission: The automatic transmission may be locked in position Mercedes-Benz GLC. Loading the vehicle for transport in the event of damage to the electrical system. To shift to Mercedes-Benz GLC. Loading the vehicle for transport, provide the on-board electrical system with power.

Mercedes-Benz GLC. Loading the vehicle for transport Load the vehicle onto the transporter.

Mercedes-Benz GLC. Loading the vehicle for transport Vehicles with automatic transmission: Shift the automatic transmission to position Mercedes-Benz GLC. Loading the vehicle for transport.

Mercedes-Benz GLC. Loading the vehicle for transport Use the electric parking brake to secure the vehicle against rolling away.

Mercedes-Benz GLC. Loading the vehicle for transport Only secure the vehicle by the wheels.

Vehicles with ADS PLUS (Adaptive Damping System PLUS)

WARNING Risk of an accident when transporting vehicles with Adaptive Damping System PLUS

When transporting vehicles with Adaptive Damping System PLUS, the vehicle/trailer combination may begin to rock and start to skid.

Mercedes-Benz GLC. Loading the vehicle for transport Load the vehicle correctly onto the transporter.

Mercedes-Benz GLC. Loading the vehicle for transport Secure the vehicle on all four wheels with suitable tensioning straps.

Mercedes-Benz GLC. Loading the vehicle for transport Do not exceed the maximum permissible speed of 35 mph (60 km/h) when transporting.

NOTE Damage to the vehicle from securing it incorrectly

Mercedes-Benz GLC. Loading the vehicle for transport After loading, the vehicle must be secured on all four wheels. Otherwise, the vehicle could be damaged.

Mercedes-Benz GLC. Loading the vehicle for transport A minimum distance of 8 in (20 cm) upwards and 4 in (10 cm) downwards must be kept to the transport platform.

Mercedes-Benz GLC. Loading the vehicle for transport Secure the vehicle on all four wheels after loading.

4MATIC vehicles/vehicles with automatic transmission

Mercedes-Benz GLC. Loading the vehicle for transport

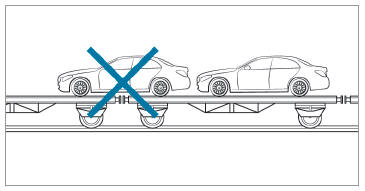

Mercedes-Benz GLC. Loading the vehicle for transport Make sure that the front and rear axles come to rest on the same transportation vehicle.

NOTE Damage to the drive train due to incorrect positioning of the vehicle

Mercedes-Benz GLC. Loading the vehicle for transport Do not position the vehicle above the connection point of the transport vehicle.

    Towing the vehicle with both axles on the ground

    Observe the notes on the permitted towing methods. Make sure that the battery is connected and charged. Observe the following points when the battery is discharged: The engine cannot be started The electric parking brake cannot be released or applied Vehicles with automatic transmission: The automatic transmission cannot be shifted to position or Vehicles with automatic transmission: If the automatic transmission cannot be shifted to position , or the multifunction display in the instrument cluster does not show anything, have the vehicle transported away...

    Towing eye storage location

    ..
