Mercedes-Benz GLC 2016-2024 Owners Manual / Seats and stowing / Stowage areas / Attaching/removing the partitioning net

Mercedes-Benz GLC : Stowage areas / Attaching/removing the partitioning net

WARNING Risk of injury or death due to poorly secured objects

The partitioning net alone cannot secure or restrain heavy objects, items of luggage or heavy loads.

You could be hit by an unsecured load, particularly in the event of abrupt changes in direction, sudden braking or an accident.

Mercedes-Benz GLC. Attaching/removing the partitioning net Always stow objects in such a way that they cannot be thrown around.

Mercedes-Benz GLC. Attaching/removing the partitioning net Secure objects, luggage or loads against slipping or tipping over, e.g. by using tie downs, even if you are using the partitioning net.

For safety reasons, always use a partitioning net when transporting a load.

Damaged partitioning nets can no longer fulfill their protective functions. Replace damaged partitioning nets. Visit a qualified specialist workshop.

Mercedes-Benz GLC. Attaching/removing the partitioning net

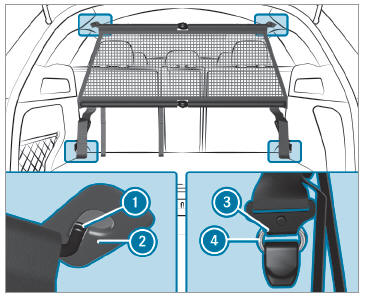

Example: partitioning net without cargo compartment enlargement

Mercedes-Benz GLC. Attaching/removing the partitioning net Extend and unfold the partitioning net. The joints on the top and bottom guide rods will audibly engage.

Mercedes-Benz GLC. Attaching/removing the partitioning net To attach: attach guide rod Mercedes-Benz GLC. Attaching/removing the partitioning net on the headliner to holders Mercedes-Benz GLC. Attaching/removing the partitioning net.

Mercedes-Benz GLC. Attaching/removing the partitioning net Engage hooks Mercedes-Benz GLC. Attaching/removing the partitioning net in tie-down eyes Mercedes-Benz GLC. Attaching/removing the partitioning net on the left and right.

Mercedes-Benz GLC. Attaching/removing the partitioning net Pull on the loose ends of the lashing straps until the partitioning net is tight.

Mercedes-Benz GLC. Attaching/removing the partitioning net After driving a short distance, check the tension of the partitioning net and re-tension it if necessary.

Mercedes-Benz GLC. Attaching/removing the partitioning net

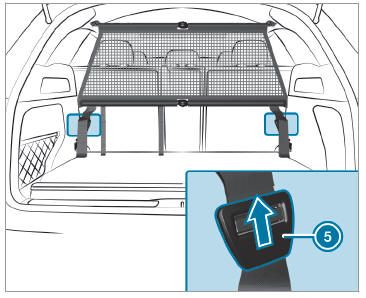

Mercedes-Benz GLC. Attaching/removing the partitioning net To remove: pull belt clamp Mercedes-Benz GLC. Attaching/removing the partitioning net upwards until the lashing straps are loose.

Mercedes-Benz GLC. Attaching/removing the partitioning net Remove hooks Mercedes-Benz GLC. Attaching/removing the partitioning net from tie-down eyes Mercedes-Benz GLC. Attaching/removing the partitioning net on the left and right.

Mercedes-Benz GLC. Attaching/removing the partitioning net Remove guide rod Mercedes-Benz GLC. Attaching/removing the partitioning net from the holders Mercedes-Benz GLC. Attaching/removing the partitioning net.

Mercedes-Benz GLC. Attaching/removing the partitioning net To store: press the red button on the top and bottom guide rods.

Collapse and roll up the partition net.
