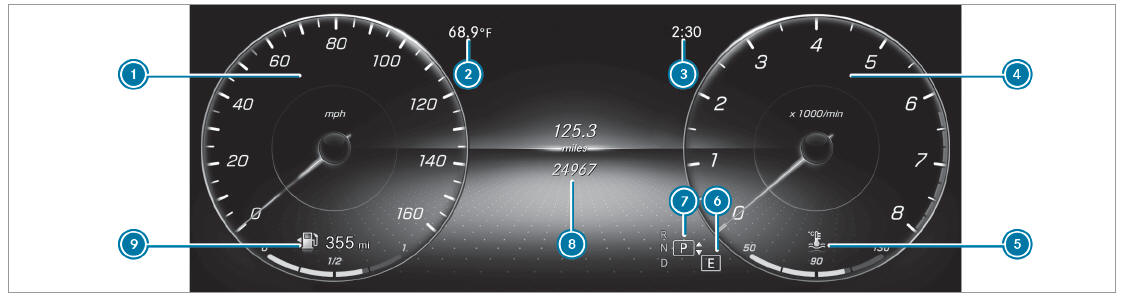

Mercedes-Benz GLC : Instrument Display and on-board computer / Instrument display overview

Speedometer
The segments on the speedometer indicate
the statuses of the following systems: cruise
control/limiter/Active Distance Assist
DISTRONIC
Outside temperature
Time
Area for additional values (example:
tachometer):
tachometer/navigation/ECO display/
consumption/G-meter/date
Coolant temperature display
During normal operation, the coolant temperature
display is permitted to rise to
248°F (120°C).
Selected drive program
Selected transmission position
Multifunction display (example:
standard display for a trip): assistance/telephone/navigation/trip/media/radio/styles
and displays/service/possible settings for Head-up Display
Fuel level and fuel filler flap
location indicator
WARNING Risk of accident due to an
Instrument Display malfunction
If the Instrument Display has failed or malfunctioned,
the function restrictions applying
to safety relevant systems are not visible...
Other information:
WARNING Risk of an accident due to
work carried out incorrectly on the battery
Work carried out incorrectly on the battery
can, for example, lead to a short circuit. This
can restrict functions relevant for safety systems
and impair the operating safety of your
vehicle...
Function of the ATA system
If the ATA system is armed, a visual and audible
alarm is triggered in the following situations:
When a door is opened
When the tailgate is opened
When the hood is opened
When the interior motion sensor is triggered
When the tow-away alarm is triggered
The ATA system is armed automatically after
approximately ten seconds in the following situations:
After locking the vehicle with the SmartKey
After locking the vehicle using KEYLESS-GO
Indicator lamp flashes when the
ATA system
is armed...
