Mercedes-Benz GLC : Through-loading feature in the rear bench seat (EASY-PACK Quickfold) / Folding the rear seat backrest forwards

WARNING Risk of accident if the rear bench seat, rear seat and seat backrest are not engaged

The rear bench seat, rear seat and seat backrest may fold forwards, even when you are driving.

  • As a result, the vehicle occupant will be pushed into the seat belt with increased force. The seat belt will not be able to protect as intended and could cause additional injury.
  • Objects or loads in the trunk or cargo compartment will not be restrained by the seat backrest.

Mercedes-Benz GLC. Folding the rear seat backrest forwards Make sure that the rear bench seat, the rear seat and the seat backrest are engaged before every trip.

If the left and right seat backrests are not engaged and locked in place, this will be shown on the multifunction display on the instrument cluster. A warning tone will also sound.

If the center seat backrest is not engaged and locked, the red lock verification indicator will be visible.

Requirements:

  • To fold the center seat backrest forwards: the center seat backrest has been unlocked.

You can fold the center and outer seat backrests forwards separately.

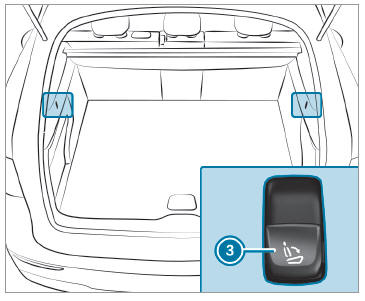

You can unlock the outer seat backrests electrically. The buttons for unlocking are located in the cargo compartment.

Mercedes-Benz GLC. Folding the rear seat backrest forwards

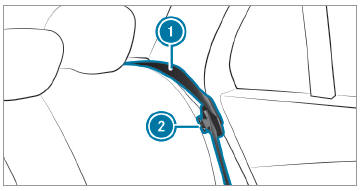

Mercedes-Benz GLC. Folding the rear seat backrest forwards Insert seat belt tongue Mercedes-Benz GLC. Folding the rear seat backrest forwards into seat belt strap holder Mercedes-Benz GLC. Folding the rear seat backrest forwards.

Mercedes-Benz GLC. Folding the rear seat backrest forwards

If necessary, when the seat backrest in the rear passenger compartment is folded forward, the front seat moves forward slightly to prevent a collision.

Mercedes-Benz GLC. Folding the rear seat backrest forwards If necessary, fully insert the head restraints in the rear seat backrest.

Mercedes-Benz GLC. Folding the rear seat backrest forwards To fold the left and right seat backrests forward: pull the right or left release handle 3.

Mercedes-Benz GLC. Folding the rear seat backrest forwards

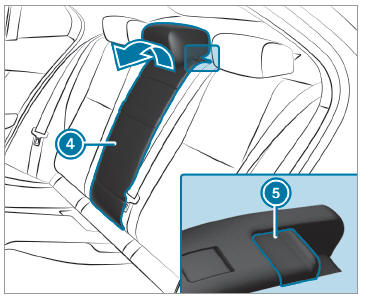

Mercedes-Benz GLC. Folding the rear seat backrest forwards To fold the center seat backrest forwards: pull release catch Mercedes-Benz GLC. Folding the rear seat backrest forwards of seat backrest Mercedes-Benz GLC. Folding the rear seat backrest forwards forwards.

Mercedes-Benz GLC. Folding the rear seat backrest forwards Fold seat backrest Mercedes-Benz GLC. Folding the rear seat backrest forwards forwards.

Mercedes-Benz GLC. Folding the rear seat backrest forwards If necessary, reset the driver's or front passenger seat.

    Through-loading feature in the rear bench seat (EASY-PACK Quickfold)

    ..

    Folding back the rear seat backrest

    NOTE Damage caused by trapping the seat belt when folding back the seat backrest The seat belt could become trapped and thus damaged when the seat backrest is folded back...

    Other information:

    Mercedes-Benz GLC 2016-2022 Owners Manual: Cockpit


    ..

    Mercedes-Benz GLC 2016-2022 Owners Manual: Front-passenger outside mirror parking position function


    The parking position makes parking easier. The front-passenger outside mirror will swivel downwards in the direction of the rear wheel on the front passenger's side when: The parking position is stored. The front-passenger mirror is selected. Reverse gear is engaged...

    Categories

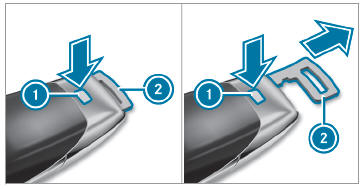

    Removing/inserting the emergency key
