Mercedes-Benz GLC : Operating fluids / Refrigerant

Notes on refrigerant

Observe the notes on operating fluids.

NOTE Damage due to incorrect refrigerant

If a non-approved refrigerant is used, the climate control system may be damaged.

Mercedes-Benz GLC. Refrigerant USA: use only R‑134a refrigerant.

Mercedes-Benz GLC. Refrigerant Canada: use only R‑1234yf refrigerant.

NOTE Damage to the climate control system due to incorrect refrigerant compressor oil

Mercedes-Benz GLC. Refrigerant Only use refrigerant compressor oil that has been approved by Mercedes-Benz.

Mercedes-Benz GLC. Refrigerant Do not mix the approved refrigerant compressor oil with a different refrigerant compressor oil.

Work on the climate control system may be carried out only by a qualified specialist workshop. All applicable regulations, as well as SAE standard J639, must be adhered to.

The information label for the climate control system regarding the refrigerant type and the refrig refrigerant compressor oil (PAG oil) is located on the inside of the hood.

Mercedes-Benz GLC. Refrigerant

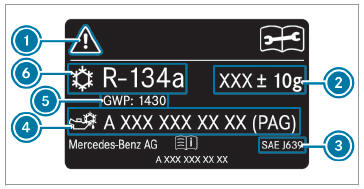

Information label (example – USA/China)

Mercedes-Benz GLC. Refrigerant Hazard and service warning symbols

Mercedes-Benz GLC. Refrigerant Refrigerant filling capacity

Mercedes-Benz GLC. Refrigerant Applicable standards

Mercedes-Benz GLC. Refrigerant PAG oil part number

Mercedes-Benz GLC. Refrigerant GWP (global warming potential) of the refrigerant used

Mercedes-Benz GLC. Refrigerant Refrigerant type

Mercedes-Benz GLC. Refrigerant

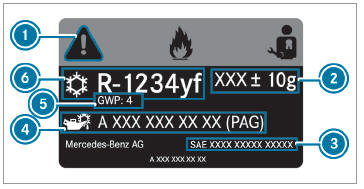

Information label (example – Canada)

Mercedes-Benz GLC. Refrigerant Hazard and service warning symbols

Mercedes-Benz GLC. Refrigerant Refrigerant filling capacity

Mercedes-Benz GLC. Refrigerant Applicable standards

Mercedes-Benz GLC. Refrigerant PAG oil part number

Mercedes-Benz GLC. Refrigerant GWP (global warming potential) of the refrigerant used

Mercedes-Benz GLC. Refrigerant Refrigerant type

Symbols Mercedes-Benz GLC. Refrigerant indicate the following:

  • Possible dangers
  • Having maintenance work carried out at a qualified specialist workshop

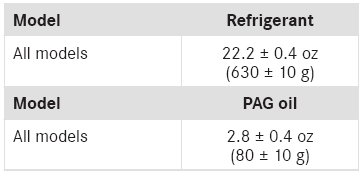

Filling capacity for refrigerant and PAG oil

Mercedes-Benz GLC. Refrigerant
